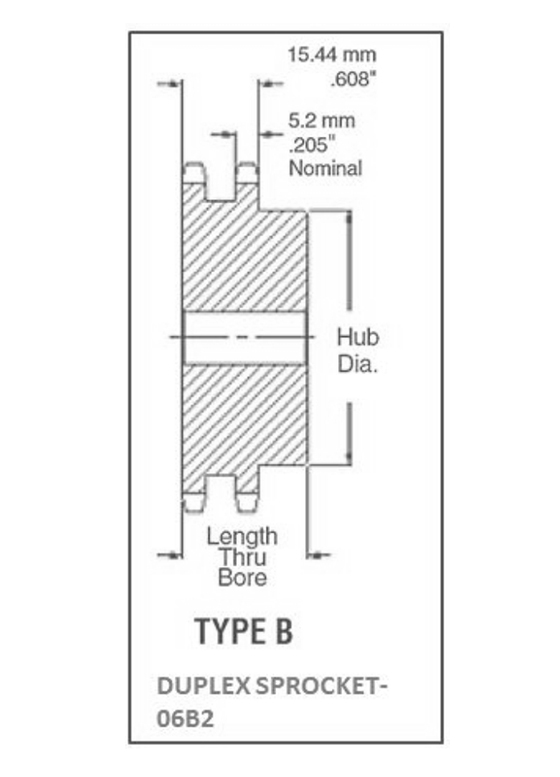

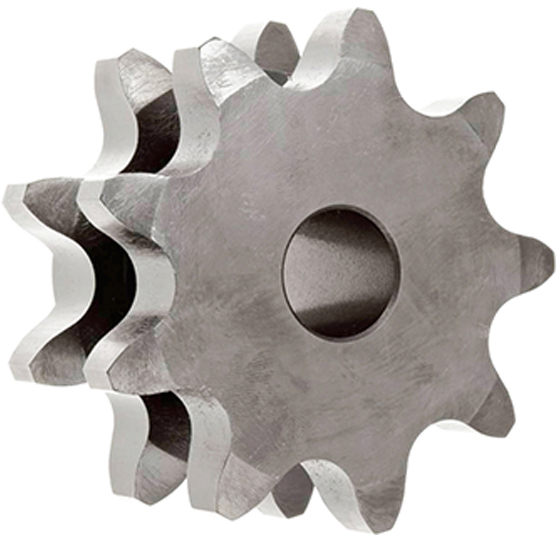

From 1/4" pitch to 3" pitch standard chains (06B to 48B) full range of Duplex Sprockets as per ISO/BS/AS/DIN readily available in stock with us. Apart from the standard M.S. material, We also manufacture Stainless Steel Roller Chain Sprockets in all sizes. The stock consists of Double Strand Sprockets from Outer Diameter (O.D.) 2" to 120" in Plate,Single Hub or Double Hub as per customer's specifications. We also provide Induction/Flame hardened teeth Duplex Sprockets.

We Have a large Stock of Stainless Steel Sprockets We have Customized Flexible Manufacturing therefore, We also make custom made double chain sprocket as per customer's Specifications.

Industrial/Mechanical Power Transmission And Conveyor

• ISO-No.: ASA60-2 = 12A-2 (3/4“ x 1/2“)
• pitch: 19,05 mm
• inner width: 12,70 mm
• Roller-dia.: 11,91 mm
• tooth width bf2: 34,6 mm
• ba 2,4 mm (radius width)
• rx 20 mm (min. tooth radius
